Dual-Thread Plastic Nozzles
Made from burr-free, polished, and passivated stainless steel, these needles are ideal for dispensing a wide range of assembly fluids.

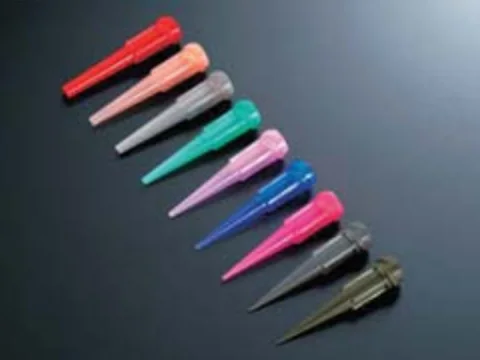

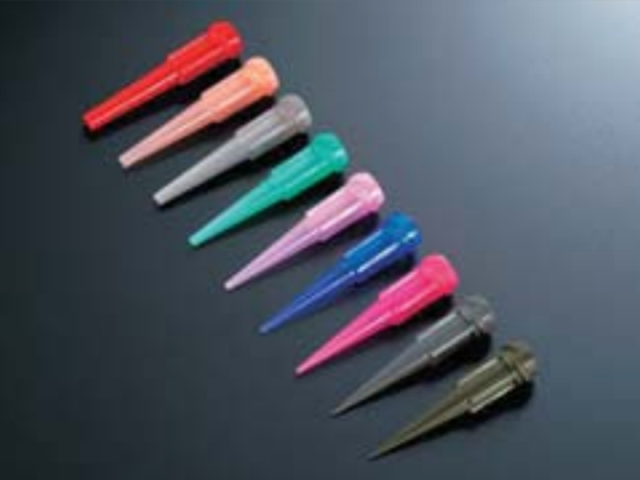

Dual-Thread Tapered Nozzles
Model Nozzle Inner Diameter (mm)
Suitable for high-viscosity adhesive dispensing and designed for single-use applications.
Equipment overview
Product Features：
Tapered design enhances fluid flow, ideal for dispensing high-viscosity materials.
Material: Polyethylene
Specifications：
Technical specifications
| Specification | Published configuration |
|---|---|
| Model | Nozzle Inner Diameter (mm) |
| 12G-U | 2.40 |
| 14G | 1.60 |
| 16G | 1.19 |
| 18G | 0.84 |
| 20G | 0.61 |
| 22G | 0.4 |
| 25G | 0.25 |
| 27G-U | 0.2 |
| 30G-U | 0.15 |
Specifications describe the published configuration. Confirm material compatibility, options and final performance requirements with Veady.
