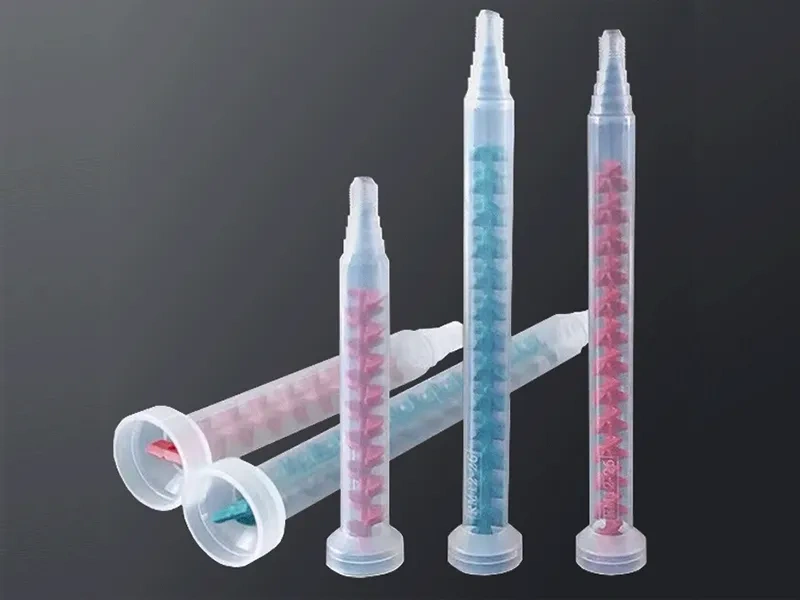

RS Series Dynamic Mixer
Model RS9-08
A core component for automated dispensing, it uses a high-speed rotating impeller to ensure homogeneous mixing of two-component adhesives.
Equipment overview
Product Features：
Designed for high-viscosity, foam-prone, or disproportionately ratioed two-component adhesives to ensure efficient mixing.
Specifications：
Technical specifications
| Specification | Published configuration |
|---|---|
| Product Name | Dynamic Mixing Nozzle |
| Model | RS9-08 |
| Number of Sections | 8 |
| Inner Diameter（mm） | 9 |
| Outer Diameter（mm） | 12.5 |
| Length（mm） | 70 |
| Outlet Inner Diameter（mm） | 3 |
| Connection Inner Diameter （mm） | 17 |
Specifications describe the published configuration. Confirm material compatibility, options and final performance requirements with Veady.
