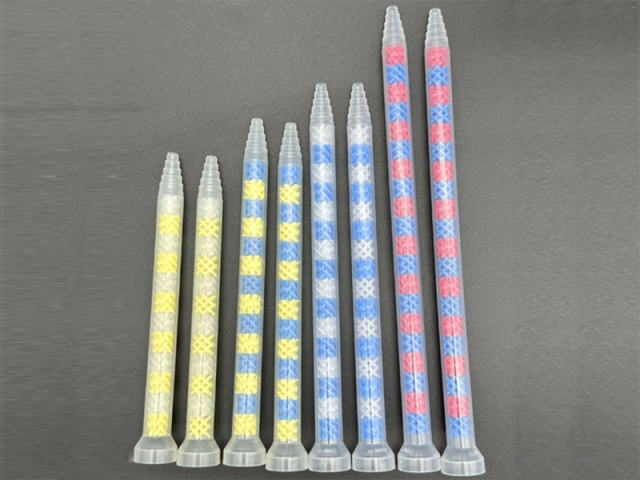

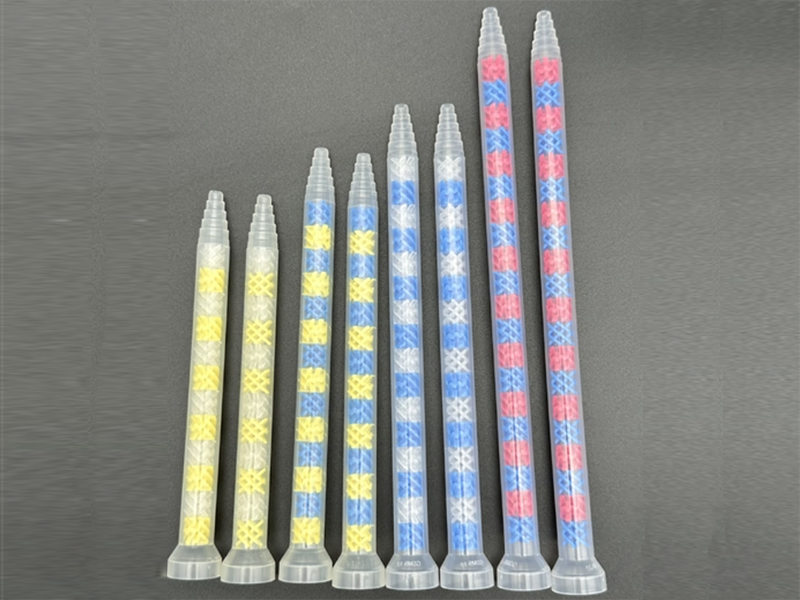

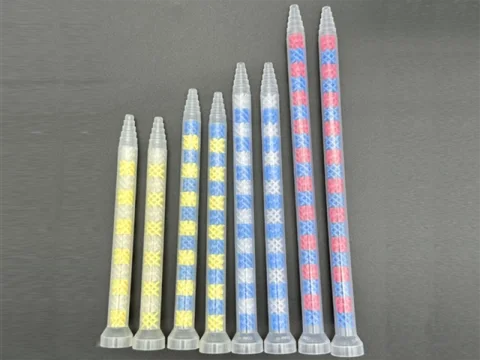

GSM Series Mixer
Model GSM9-12
GSM static mixers offer enhanced mixing efficiency compared to standard helical and square designs.
Equipment overview
Product Features：
The GSM series static mixing tube achieves triple the mixing efficiency of conventional helical or square mixers under identical conditions of ratio, volume, and viscosity. In extreme scenarios—such as foam mixing, highly disparate viscosities, or uneven ratios—its efficiency increases to 6-10 times that of standard mixers.
Specifications：
Technical specifications
| Specification | Published configuration |
|---|---|
| Product Name | GSM Series Mixing Tube |
| Model | GSM9-12 |
| Number of Sections | 12 |
| Inner Diameter（mm） | 9.4 |
| Outer Diameter（mm） | 12.7 |
| Length（mm） | 145 |
| Outlet Inner Diameter（mm） | 3 |
| Connection Inner Diameter （mm） | 17 |
Specifications describe the published configuration. Confirm material compatibility, options and final performance requirements with Veady.
