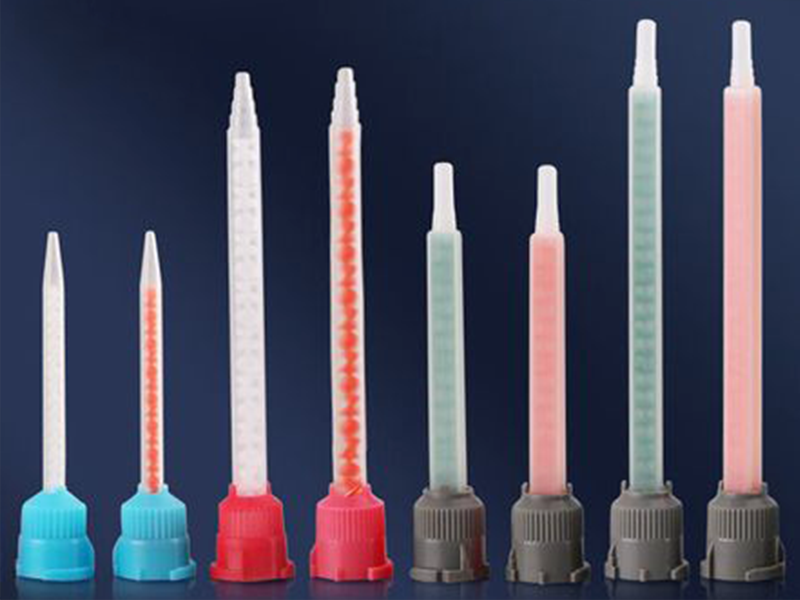

Product Features：
The MBH series features a helical core structure, optimized through fluid dynamics to achieve high-efficiency mixing, while offering additional properties such as tensile resistance and corrosion tolerance.
Specifications：
|
Product Name
|
MBH Series Mixing Tube |
||||
|
Model |
MB3.2-16L（10:1） |
MB3.2-16S（1:1） |
MB3.2-16S（10:1） |
MB5.4-16S（1:1） |
MB5.4-16S（10:1） |
|
Number of Sections |
16 |
16 |
16 |
16 |
16 |
|
Inner Diameter（mm） |
3.2 |
3.2 |
3.2 |
5.4 |
5.4 |
|
Outer Diameter（mm） |
4.8 |
4.8 |
4.8 |
7.5 |
7.5 |
|
Length（mm） |
73 |
77 |
77 |
112 |
112 |
|
Outlet Inner Diameter（mm） |
2 |
1 |
1 |
1.5 |
1.5 |
|
Connection Inner Diameter （mm） |
15 |
15 |
15 |
15 |
15 |
