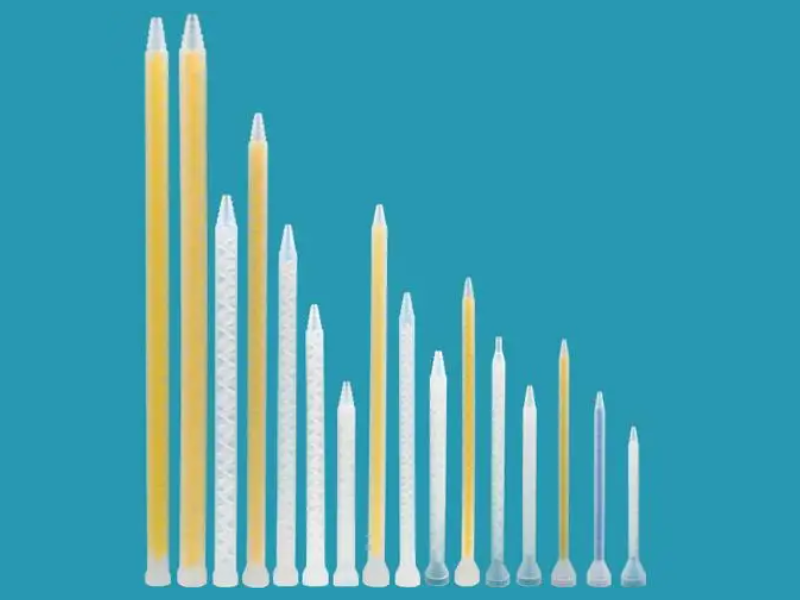

MS Series Static Mixer
Model MS06-18
The MS Series Static Mixer is a specialized tool designed for two-component adhesives, utilizing an internal helical structure to achieve efficient mixing without requiring external power.
Equipment overview
Product Features：
The MS Series Static Mixer employs either spiral blades or corrugated channel designs to achieve homogeneous mixing through fluid division and recombination. It is suitable for high-accuracy ratio applications and compatible with standard 200ml/400ml cartridges. Selected models support customized inner diameters, lengths, and connection types (e.g., flared outlets, stepped exits).
Specifications：
Technical specifications
| Specification | Published configuration |
|---|---|
| Product Name | MS Series Static Mixer |
| Model | MS06-18 |
| Number of Sections | 18 |
| Inner Diameter（mm） | 6 |
| Outer Diameter（mm） | 10 |
| Length（mm） | 150 |
| Outlet Inner Diameter（mm） | 1.5 |
| Connection Inner Diameter （mm） | 17 |
Specifications describe the published configuration. Confirm material compatibility, options and final performance requirements with Veady.
