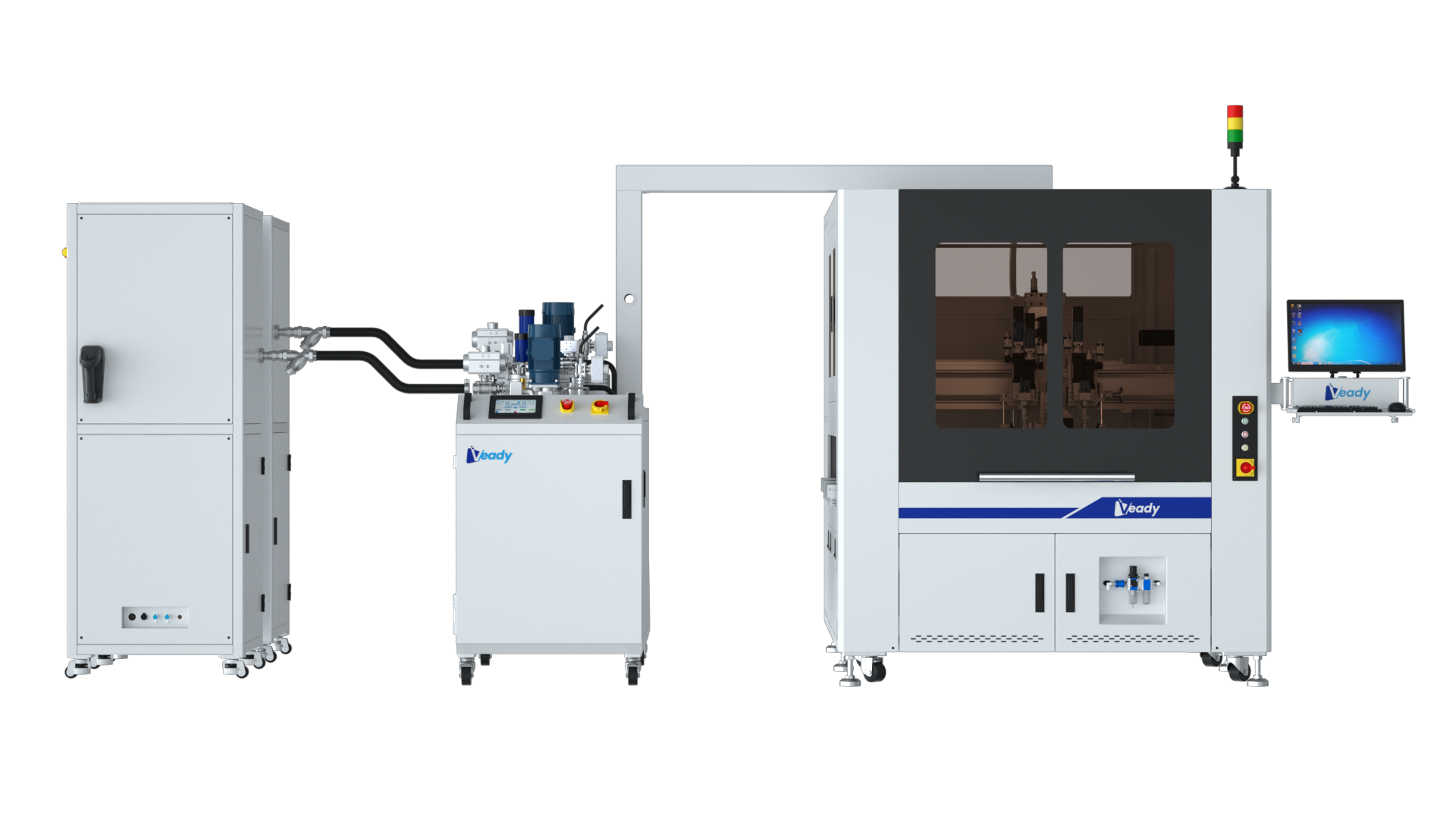

Dual-track Dual-head Vision Potting Machine

Product Features：

Adopting dual-track conveying and positioning for potting operations, and a two-component screw dynamic mixing valve, the equipment achieves high-precision proportioning and mixing of two-component adhesives. It integrates intelligent monitoring functions such as CCD vision positioning and laser height measurement, ensuring precise control over the entire process from glue supply to potting.

Specifications：

Suitable Adhesives：WEVO (Germany) Two-Component Polyurethane (PU).

Product Applications：Power tools, automotive door lock micro switches, tire pressure sensors, ultrasonic radars, etc.

Key Features

• Twin-track conveying — parts travel on two parallel lanes, so one lane can be loaded or unloaded while work continues on the other.
• Dual dispensing heads — each head is programmed over its own lane, giving you two independent potting streams inside a single footprint.
• CCD vision alignment — a camera locates each part on its fixture before the head moves, so the pot follows where the part actually sits rather than assuming it is perfectly placed.
• Laser height measurement — dispensing height is checked at the working position, which keeps the drop consistent when parts sit slightly differently in a tray or carrier.
• Closed-loop process monitoring — the potting machine watches glue supply, proportioning, mixing and potting as one chain, so a drifting parameter shows up during the run instead of after curing.

Material Supply & Preparation

1. Component A and component B are drawn from their own containers through a pre-processing feeding station, so each side reaches the valve in a steady stream rather than in surges.
2. A vacuum material preparation unit works the material under vacuum before it is dosed — the stage that keeps entrained air from reaching the shot.
3. Prepared components are then metered to the mixing valve on demand, so a full tray of parts can be potted through without stopping to top up or re-prepare.
4. Because the feeding station, the vacuum preparation unit, the valve and the metering all come from one dispensing machine manufacturer, they are matched to work as a single chain instead of being assembled from mixed sources.

Two-Component Mixing & Metering

The screw dynamic mixing valve is where the two components meet. A and B arrive through separate feed lines, and the valve proportions, blends and dispenses them in one continuous pass, so what leaves the nozzle has just been mixed instead of sitting in a batch. Two things follow from that. There is no pot life running against the operator, because material is mixed on demand. And the blend stays consistent across a long run, so the last part of a shift is potted with the same ratio as the first. In an adhesive dispensing system designed this way, proportioning, mixing and dispensing happen in one pass, which keeps the shot defined by the programme rather than by how the material was handled beforehand.

Installation & Commissioning

1. Before the potting machine is moved in, confirm the final position, the floor loading and the route into the building, and check how your A and B containers will sit alongside the feed side.
2. Verify the incoming power and compressed air at the final position against the machine's ratings, and let both supplies stabilise before the first powered run.
3. Level the tracks and set the fixtures square, then load a tray of sample parts and align the fixture position with the working area.
4. Teach the vision and height references using your own parts, so the settings are made against real product rather than a sample that sits differently in the fixture.
5. Run a first-article batch: check fill, position and cure, adjust the recipe if needed, and keep the approved settings as the production standard for that product.

Technical Support & Model Matching

As the manufacturer, Suzhou Veady Precision Glue Dispensing Systems Co., Ltd supports your project from selection through startup. Share your adhesive, substrate, throughput and accuracy target, and our engineers help match the right dispensing, potting, vacuum potting or material preparation configuration. We also guide installation and commissioning, process parameter setup, and fault troubleshooting, and provide factory-direct service and bulk supply for long-term production.

FAQ

Q1. Which adhesives can this machine run?

Two-component adhesives are the design case, and the reference material for this model is WEVO two-component polyurethane from Germany. Two-component PU is widely used for encapsulating small assemblies because it protects the electronics and holds up in service. If you plan to run a different grade or ratio, tell us the material and we will confirm that the valve and feed are matched to it.

Q2. What part sizes and fixtures does the machine suit?

Parts are carried in fixtures or trays rather than loaded loose, so the practical limit is set by the fixture you choose to run. Small components suit multi-cavity trays, and the working area has room for a full tray rather than a single part. If your part is unusually tall or the assembly is heavy, mention it when the fixture is designed.

Q3. Can the two tracks run different products at the same time?

The tracks are parallel lanes of one adhesive dispensing system, so the usual way to run them is the same product on both for maximum output. If you want a different product and programme on each lane — a high-volume part on one and a lower-volume variant on the other, for example — tell us when the machine is being specified so the tracks and fixtures are set up that way.

Q4. What happens if the machine pauses mid-shift?

Unlike a single-component industrial glue dispenser, this machine has a working clock: once A and B have met in the mixing element, the reaction has started. Before a break, a shift handover or a longer stop, run the purge and cleaning routine that matches your material, and never leave mixed adhesive sitting in the valve. The exact routine depends on your grade and is set out for your machine.

Q5. How much operator skill does daily running need?

Day-to-day production is mostly loading and unloading trays and starting the right programme, which any trained operator can do. Setting up a new product — the fixture, the vision references and the recipe — is the more skilled job and is normally handled by a process technician rather than by everyone on the shift. Once a product has been taught, running it is routine.

Q6. Can the machine be configured for our own part and adhesive?

Yes. As a dispensing machine manufacturer we build this model around the job: working area, track and fixture layout, mixing valve and material feed are all matched to the parts you want to pot and the two-component adhesive you run. Send the part drawing, your fixture idea and the adhesive datasheet, and our engineers will come back with a configuration to review before anything is built.
