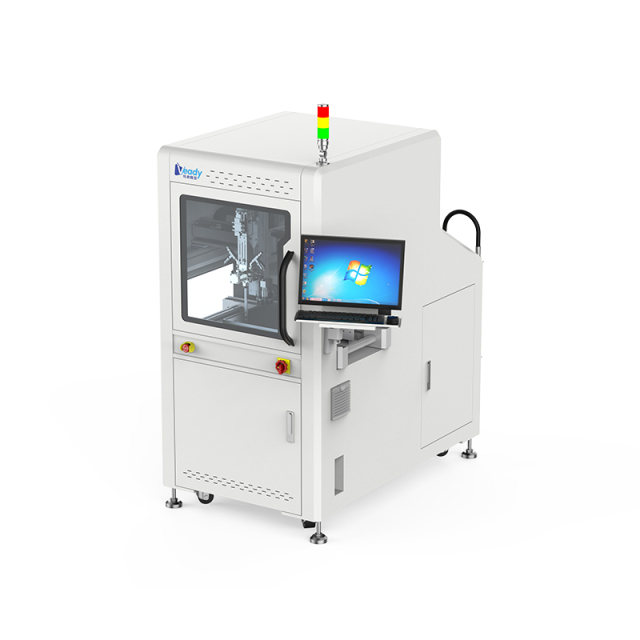

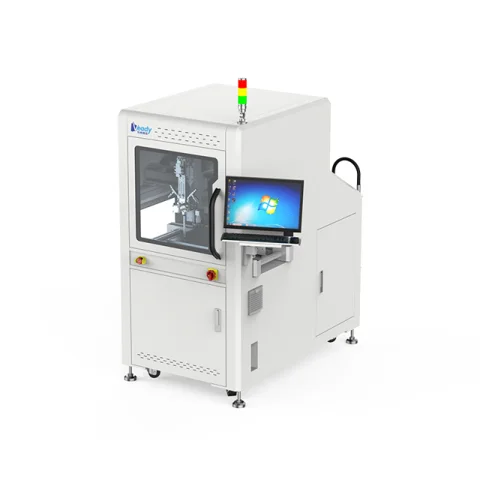

Online Vision Potting Machine

Functional Role and Intended User Base

The Online Vision-Guided Dispensing Machine serves as an advanced potting dispensing machine tailored for industrial manufacturers requiring precision adhesive application. Developed for sectors needing strict process consistency, it supports automated dispensing setups with minimal manual input. End users such as electronic component producers and battery manufacturers benefit from its capacity to handle two-component adhesives, including epoxy resin. As an equipment solution from a reputable automatic potting machine manufacturer, it optimizes production workflows by integrating vision-guided positioning and calibration, facilitating reliable and repeatable glue potting.

Technical Composition and Performance Specifications

Equipped with a gantry-based three-axis system, this glue potting machine delivers mechanical precision within ±0.02mm, accompanied by dispensing accuracy of ±3%. Its technical features include CCD vision for needle calibration, product code recognition, and laser height measurement to maintain exact potting trajectory. The device supports multiple tank sizes (10L to 60L) with heating, stirring, defoaming, and liquid level monitoring for A/B materials, ensuring adhesive consistency. Featuring automated needle cleaning and glue weight measurement, this epoxy potting machine ensures continuous process control and efficiency suited to high-volume industrial environments.

Industry Application and Operational Value

The machine is widely applicable across automotive electronics, power tool manufacturing, energy storage, and solar photovoltaic module production. By offering precise potting of components such as ignition coils, micro switches, and lithium battery cells, it enhances product reliability and durability. The integration of variable surface height detection guarantees uniform adhesive dispensing even on uneven substrates. As a turnkey solution from a certified automatic potting machine manufacturer, it supports compliance with manufacturing standards, reduces material waste, and facilitates scalable automation strategies in diverse industrial operations.

Product Features：

The A/B material tanks are equipped with heating, stirring, liquid level monitoring, defoaming, circulation, and reflow functions. The gantry three-axis system, combined with independently developed control software, enables precise proportioning of two-component adhesives and automated potting along complex trajectories.

Structural and System Design Benefits

This automatic potting machine features a modular gantry architecture that permits complex trajectory control and flexibility in potting patterns. The inclusion of a CCD vision system integrated with laser height detection enhances positional accuracy while reducing setup time. The design accommodates various adhesive viscosities and sizes of supply tanks, making it adaptable for different industrial applications. Furthermore, its automated needle calibration and cleaning systems minimize downtime and maintenance demands, representing a technically sophisticated potting dispensing machine engineered for seamless integration into automated production lines.

Operational Performance and User-Centric Advantages

The glue potting machine offers users consistent dispensing quality via precision metering and automated process monitoring tools such as glue weight sensors and liquid level detection. These features reduce adhesive waste and ensure batch-to-batch repeatability, which translates into cost savings and improved product yields. The machine’s software supports flexible programming and trajectory generation, accommodating complex component geometries. This reliability and user-friendly operation mark it as a leading epoxy potting machine that enhances throughput and minimizes manual variability, delivering measurable gains in manufacturing efficiency.

Specifications：

Precision Potting in Automotive Electronics Manufacturing

In the automotive electronics sector, ensuring reliable adhesive application is critical for components like ignition coils and micro switches. The automatic potting machine provides precise, consistent glue dispensing controlled via CCD vision-guided positioning, meeting stringent quality requirements. Its ability to integrate with existing production lines and manage multiple adhesive types, including epoxy resin, facilitates compliance with automotive standards. This machine supports automated workflows by delivering repeatable potting while reducing the risk of defective assemblies, thereby enhancing overall manufacturing reliability within vehicle electronics assembly environments.

Controlled Dispensing for Energy Storage Battery Production

Energy storage battery manufacturing demands exact adhesive application to ensure cell durability and safety under operational stress. The Online Vision-Guided system’s laser height measurement and automated material handling make it highly suitable as a potting dispensing machine for lithium-ion and similar battery cells. By controlling proportioning and potting precision, it prevents adhesive overflow or deficit, which can compromise battery integrity. Its compatibility with different adhesive chemistries and tank sizes allows adaptation to varied product specifications, optimizing integration into battery assembly lines while adhering to rigorous safety and quality protocols.

Suitable Adhesives：Epoxy resin, polyurethane, silicone rubber and other two-component adhesives.

Product Applications：Motors, Hall effect coils, micro switches, automotive electronics, precision sensors, ignition coils, power lithium batteries, energy storage batteries, solar photovoltaics, etc.

FAQ

What types of adhesives are compatible with the Online Vision-Guided Dispensing Machine?

The machine supports multiple two-component adhesives such as epoxy resin, polyurethane, and silicone rubber. Its adaptability makes it suitable for various production requirements, ensuring consistent application across different materials in automated processes.

Can the Online Vision-Guided Dispensing Machine be customized for specific production needs?

Yes, the system accommodates optional feeding methods with tank sizes of 10L, 20L, 45L, and 60L. This flexibility allows adjustments in adhesive volume and process flow, enabling efficient use tailored to your production scale or adhesive type.

What maintenance procedures are recommended for the automatic potting machine?

Regular maintenance includes automated needle cleaning, inspection of the gantry system, and monitoring glue weight sensors. Proper upkeep ensures consistent accuracy and longevity of the automatic potting machine, reducing downtime and maintaining process quality.

How does the machine ensure precise dispensing for complex potting applications?

The machine combines a gantry three-axis system with CCD vision positioning, laser height detection, and glue weight measurement to deliver precise dispensing. These features optimize performance in the potting dispensing machine by controlling trajectory and material volume consistently.
