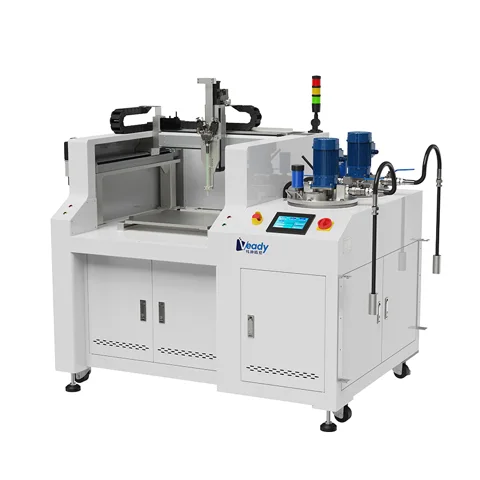

Offline AB Potting Machine

Product Features：

The A/B material tanks are equipped with heating, stirring, liquid level monitoring, defoaming, circulation, reflow, and other functions. The gantry three-axis system, combined with independently developed control software, enables precise proportioning of two-component adhesives and automated potting along complex trajectories.

Specifications：

Suitable Adhesives：Epoxy resin, polyurethane, silicone rubber and other two-component adhesives.

Product Applications：Servo motors, new energy motors, micro switches, OBC charging modules, automotive electronics, precision sensors, ignition coils, solar photovoltaics, etc.



Production Applications

• Servo and new energy motors. Winding and terminal areas that need a measured shot per unit, so the fill stays consistent across the batch.
• OBC charging modules and automotive electronics. Deeper housings where the head travels into position and follows the contour instead of filling from one point.
• Micro switches and precision sensors. Small parts, usually run in trays, so the gantry steps from part to part and a full tray is potted in one setup.
• Ignition coils. Narrow, deep cavities where the nozzle has to reach inside the part before the shot is released.
• Solar photovoltaic assemblies. Junction and module electronics potted for outdoor service, where a complete, even fill matters more than cycle time.
• Mixed work cells. Where a single-component industrial glue dispenser is already in use, this machine is often added for the two-component potting jobs instead of installing a dedicated line.

Who It Suits

Potting looks different in every plant, and this machine tends to suit four situations.

Motor and power-electronics manufacturers moving up from hand mixing want the same fill on every unit without building a full line. Automotive electronics and sensor builders whose runs are steady but not large enough to justify dedicated inline equipment are a second fit. Teams that already use an industrial glue dispenser for single-component work often add this machine when a two-component potting step appears in the process. And R&D or pilot teams validating an encapsulation process can run real production parts here before a larger line is committed.

Technical Support & Model Matching

As the manufacturer, Suzhou Veady Precision Glue Dispensing Systems Co., Ltd supports your project from selection through startup. Share your adhesive, substrate, throughput and accuracy target, and our engineers help match the right dispensing, potting, vacuum potting or material preparation configuration. We also guide installation and commissioning, process parameter setup, and fault troubleshooting, and provide factory-direct service and bulk supply for long-term production.

FAQ

Q1. Which two-component adhesives can this machine dispense?

Epoxy resin, polyurethane, silicone rubber and other two-component adhesives fall within the range of this adhesive dispensing system. Mix ratios, viscosities and filler contents differ between grades, so send us the data sheet for the material you intend to run and we will confirm the tank, stirring and dispensing setup that matches it.

Q2. Is this a stand-alone machine or does it need to be built into a line?

It runs as a stand-alone automated dispensing system rather than as a section of a production line. Parts are loaded by hand onto the platform, the machine prepares and doses each shot itself, and finished parts come off the same platform, so there is no conveyor, feeder or downstream handling to coordinate. There is no line to stop and no conveyor to synchronise, which keeps startup and changeover simple.

Q3. What maintenance does the material path need between shifts?

Keep the two sides apart and keep them moving. Flush the mixing and dispensing path before the adhesive reaches the end of its pot life, and make sure A and B only meet at the mix point, because mixed material left sitting in a line is what hardens and blocks a nozzle. At shift handover, leave the tanks, lines and mix point in a condition the next operator can start from cleanly.

Q4. How much skill does running this machine day to day take?

Day-to-day operation is loading parts and starting a stored job; the setup work happens once, when a program is taught for each product and the process parameters are fixed. Our engineers work with your team during installation and commissioning to set up the first programs, so an operator who can follow a work instruction can run production.

Q5. Can one machine run several different products?

Yes. A different product usually means a different fixture, a different potting program and sometimes a different tank set, so moving between jobs comes down to swapping the fixture and calling up the stored program. As a dispensing machine manufacturer we set the machine up so that mixed-batch production stays practical rather than becoming a rebuild each time.

Q6. Does the machine pull a vacuum while potting?

No. This adhesive dispensing system meters, mixes and pots at atmospheric pressure, so it suits processes that do not require reduced-pressure encapsulation. Where a part does need bubble-free potting under vacuum, one of our vacuum potting machines is the correct format, and we will help you compare the two approaches for your part.
