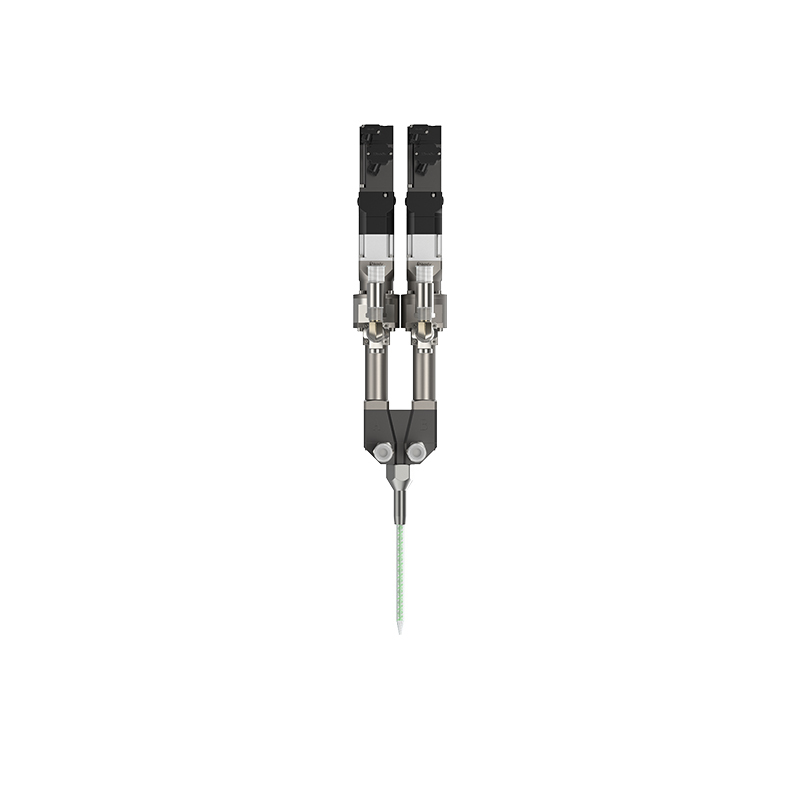

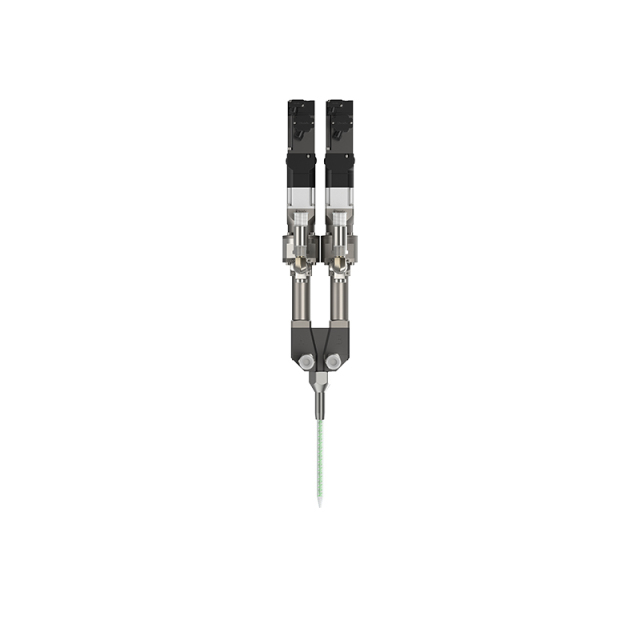

SV Dual-Component Screw Valve
Model SV3535
A device designed for precise mixing and dispensing of two-component adhesives (e.g., AB adhesives, epoxy resins, silicones).
Equipment overview
Product Features：
SV Dual-Component Screw Valve operates by using two independent servo motors to drive eccentric screws, regulating the speed of each motor to control the flow rates of both adhesive components, thereby achieving precise mixing ratios and dispensing volumes.
Specification：
Technical specifications
| Specification | Published configuration |
|---|---|
| Product Name | SV Dual-Component Screw Valve |
| Model | SV3535 |
| Flow Range | 7-42ml/min |
| Min. Flow Rate | 0.7ml |
| Ratio Range | 1:1 to 10:1 |
| Applicable Viscosity | ≤500,000mpas |
| Repeatability Accuracy | ≤±1% |
| Supply Pressure | 0-0.6MPa |
| Dispensing Pressure | Max 25bar |
| Operating Temperature | 10-40℃ |
| Valve Weight | 5.5KG |
| Overall Dimensions | 115*60*400mm |
Specifications describe the published configuration. Confirm material compatibility, options and final performance requirements with Veady.
