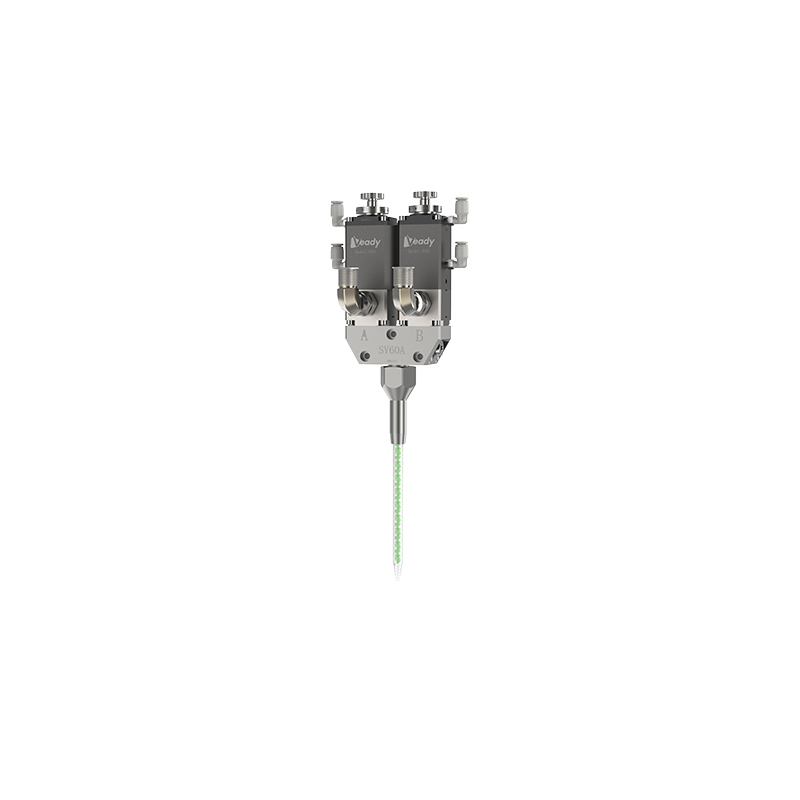

SV80 Static Valve
Model SV80
Utilizes a dual-circuit controlled needle-type structure, suitable for processing materials of varying viscosities during extended operation cycles.
Equipment overview
Product Features：
Designed for medium-to-high viscosity two-component adhesives. Compatible with standard static mixing tubes for cleaning-free operation. Optional valve body heating and static mixing heating functions available.
Specification：
Technical specifications
| Specification | Published configuration |
|---|---|
| Product Name | SV80 Static Valve |
| Model | SV80 |
| Min. Drive Pressure | 0.4Mpa |
| Max. Fluid Pressure | 200bar |
| Max. Operating Frequency | 240 cycles/min |
| Drive Component Material | Aluminum Alloy |
| Fluid Component Material | SUS304 |
| Needle Material | Tungsten Steel |
| Inlet Size | G1/2 Internal Thread |
| Mounting Method | 3*M5 Counterbore |
| Dimensions | 175mm*125mm*255mm（Excluding mixing tube） |
| Valve Weight | 5KG |
Specifications describe the published configuration. Confirm material compatibility, options and final performance requirements with Veady.
