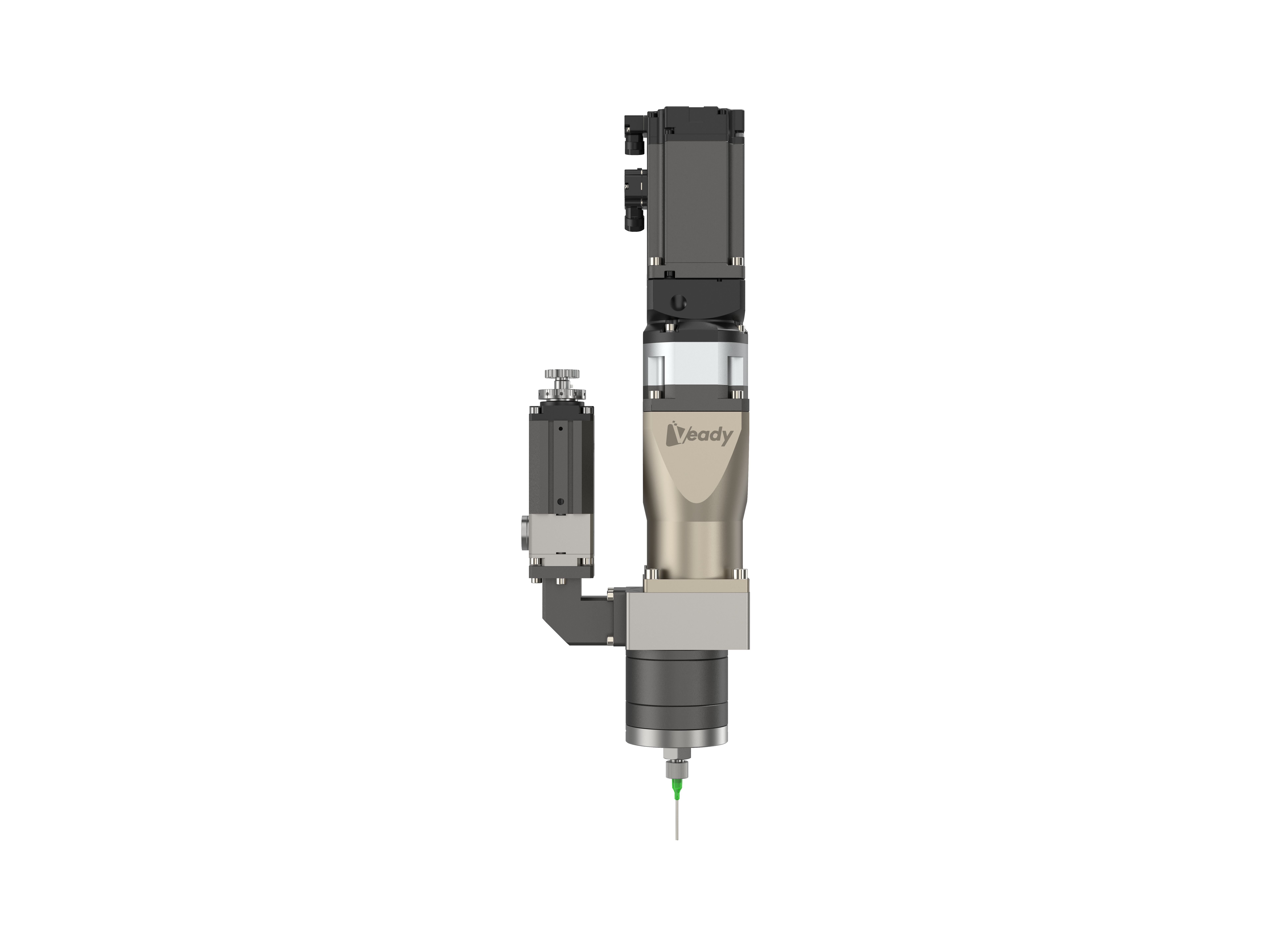

GV Single-Component Gear Valve
Designed for single-component adhesive dispensing, coating, and potting with fast, stable, and continuous output capability.
Equipment overview
Product Features：
GV Single-Component Gear Metering Valve delivers continuous, rapid, precise, and stable adhesive control. Configurable with precision pressure sensors at both inlet and outlet, it features real-time monitoring to ensure consistency and high accuracy in dispensing, potting, and coating processes.
Specifications：
Technical specifications
| Specification | Published configuration |
|---|---|
| Product Name | GV Single-Component Gear Valve |
| Product Name | GV15 |
| Min. Flow Rate | 0.188ml |
| Flow Range | 0.188-3.0ml/s |
| Flow per Revolution | 1.5ml/rev |
| Suitable Viscosity | ≤50,000mPas |
| Dispensing Accuracy | ≤±2% |
| Inlet Pressure | 5-25bar |
| Outlet Pressure | Max 40bar |
| Inlet Size | G1/4 |
| Mounting Method | 4*M5 |
| Overall Dimensions | 85*125*400mm |
| Valve Weight | 5.5KG |
Specifications describe the published configuration. Confirm material compatibility, options and final performance requirements with Veady.
