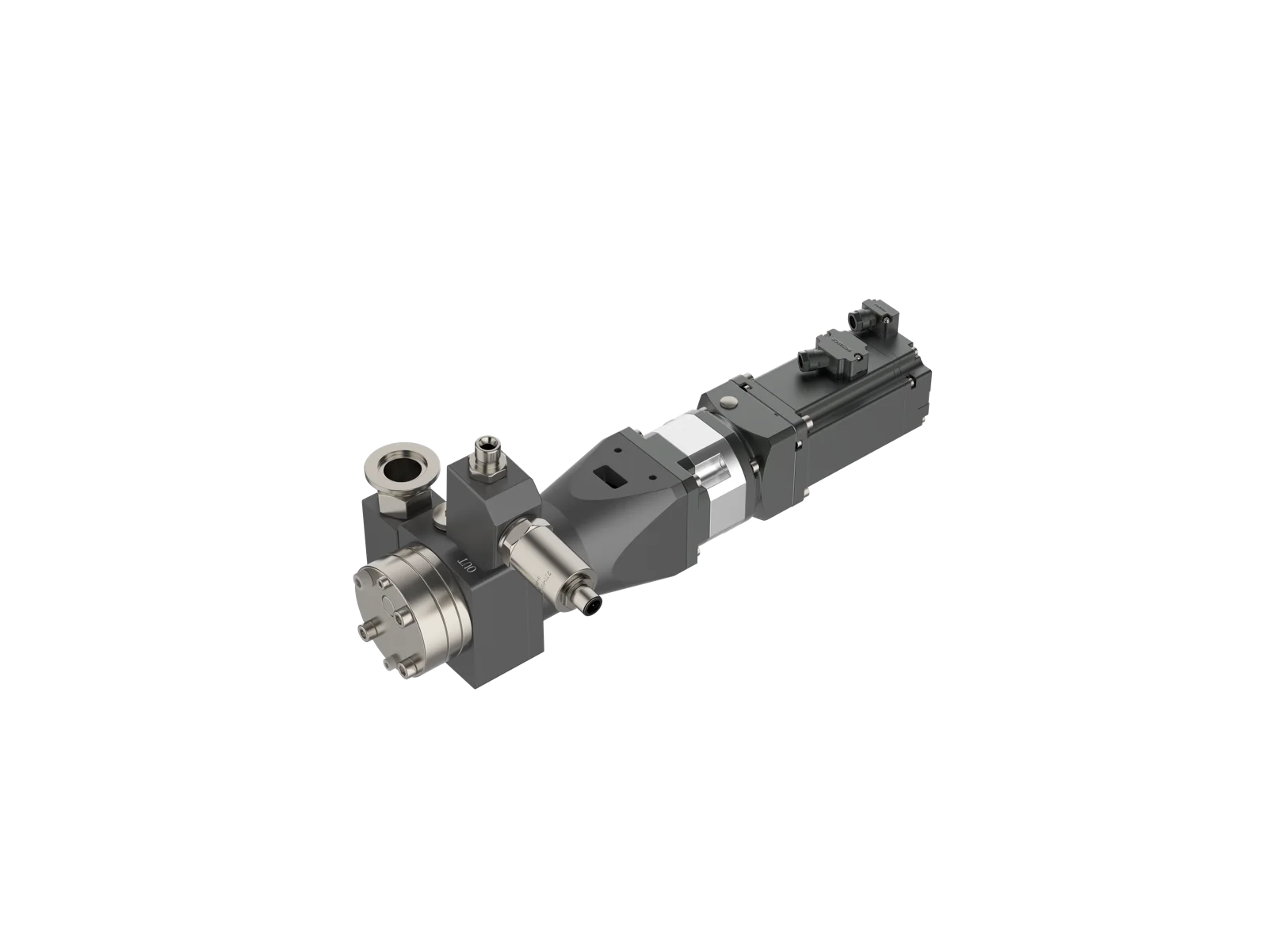

Gear Metering Pump
A precision fluid transfer device based on gear engagement principles, delivering high-precision flow control through fixed displacemen…

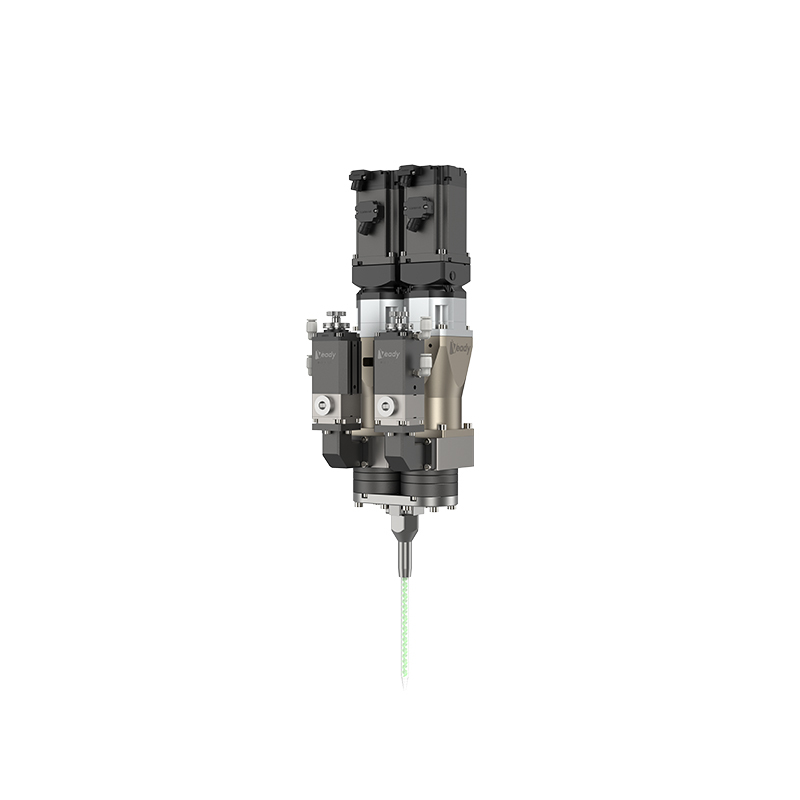

GV Dual-Component Gear Valve
Designed for two-component adhesive dispensing, coating, and potting applications, delivering fast, stable, and continuous output performance.
Equipment overview
Product Features：
Engineered for continuous, rapid, precise, and stable adhesive control. Configurable with precision pressure sensors at both inlet and outlet ports, it integrates real-time monitoring to ensure consistent, high-precision performance in dispensing, potting, and coating applications.
Specifications：
Technical specifications
| Specification | Published configuration |
|---|---|
| Product Name | GV Dual-Component Gear Valve |
| Product Name | GV1515 |
| Min. Flow Rate | 0.375ml |
| Flow Range | 0.375-6.0ml/s |
| Applicable Ratio | 1:1至2:1 |
| Suitable Viscosity | ≤50,000mPas |
| Dispensing Accuracy | ≤±2% |
| Inlet Pressure | 5-25bar |
| Outlet Pressure | Max 40bar |
| Inlet Size | G1/4 |
| Mounting Method | 4*M5 |
| Overall Dimensions | 150*125*420mm |
| Valve Weight | 11.5KG |
Specifications describe the published configuration. Confirm material compatibility, options and final performance requirements with Veady.
Technical resources
GV Dual-Component Gear Valve — technical referenceHTML technical reference and specification tableExplore related equipment.

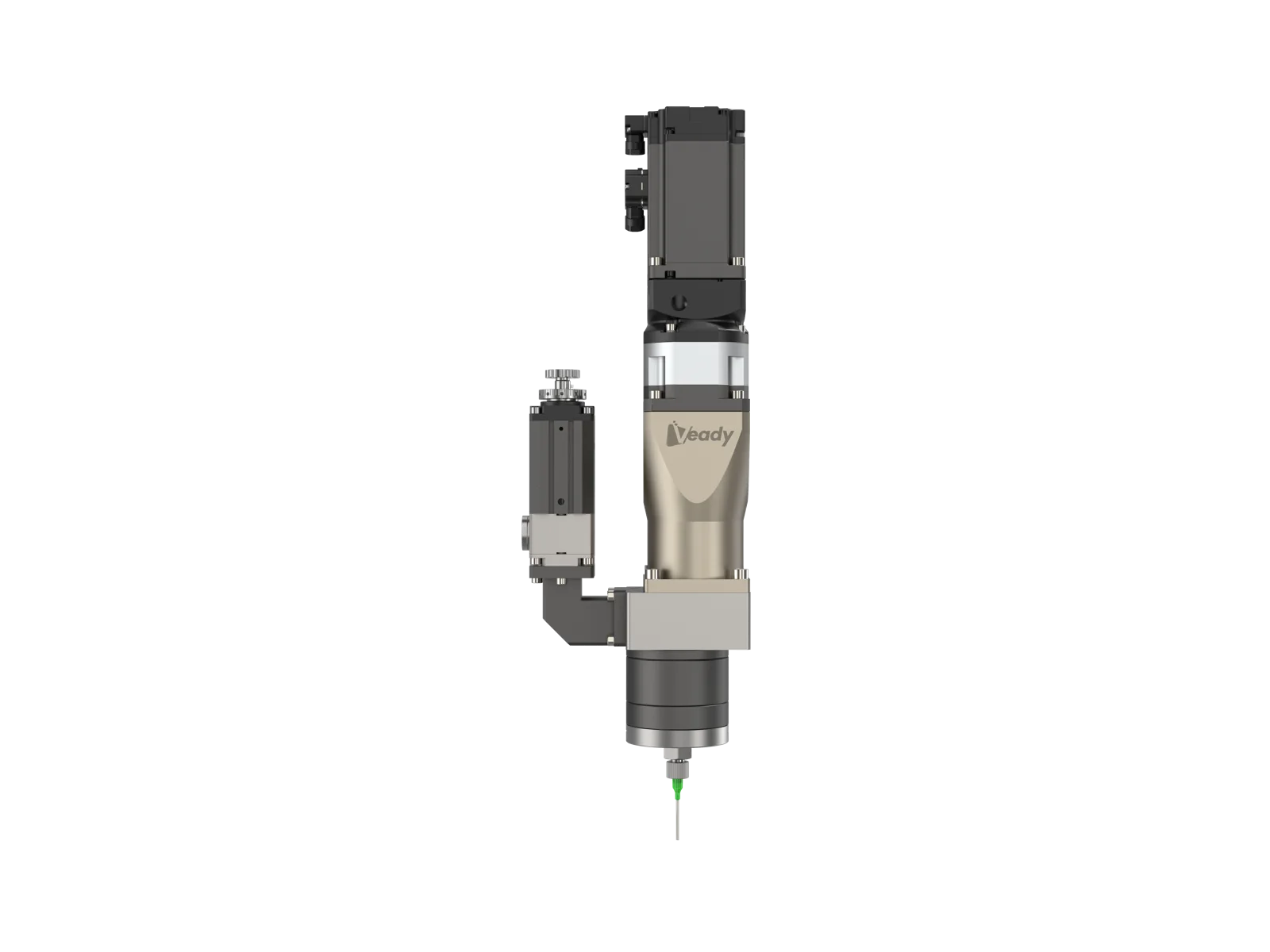

GV Single-Component Gear Valve
Designed for single-component adhesive dispensing, coating, and potting with fast, stable, and continuous output capability.

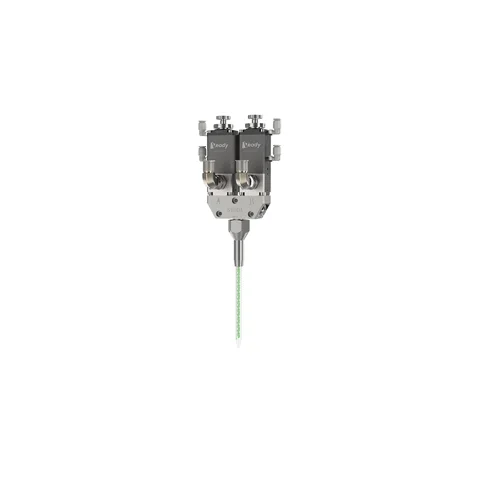

SV80 Static Valve
