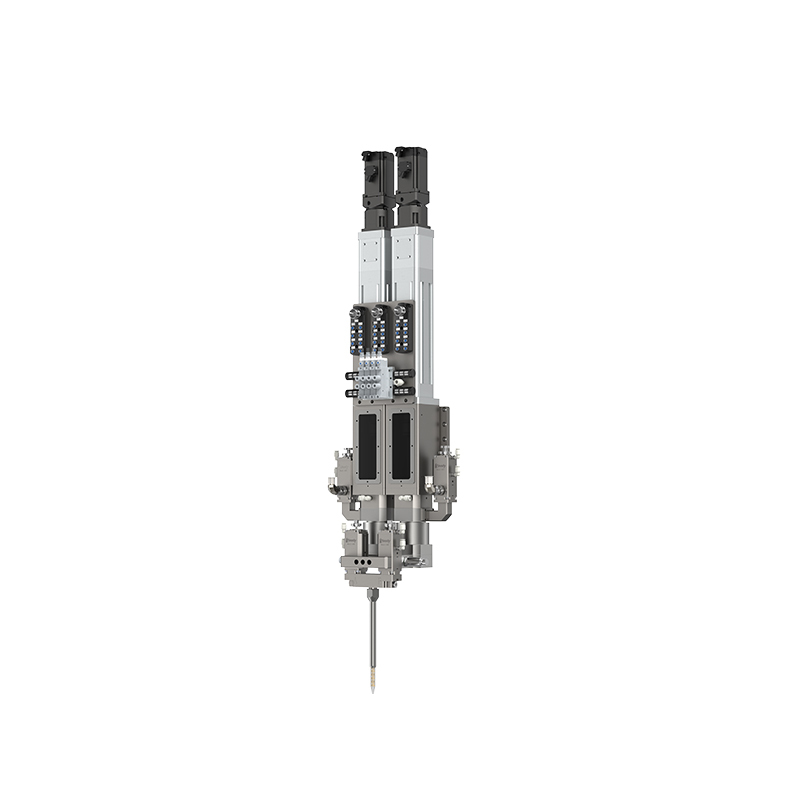

DM Dual-Component Metering Valve
Model DM10-2K
A plunger-type, servo motor-driven metering valve with adjustable dispensing ratios.
- Dispensing Speed
- 0.2-1ml/s
Equipment overview
Product Features：
Specifically engineered for high-filler, high-viscosity adhesives with exceptional wear resistance. The modular design supports robotic integration and MES system connectivity for precision dispensing.
Specifications：
Technical specifications
| Specification | Published configuration |
|---|---|
| Product Name | DM Dual-Component Metering Valve |
| Model | DM10-2K |
| Metering Method | Plunger |
| Metering Accuracy | ≤±3% |
| Ratio Range | 100:100~100:10 |
| Pressure Range | 0-160bar |
| Filling Speed | 5s |
| Dispensing Speed | 0.2-1ml/s |
| Drive Power | 0.2kW |
| Drive Voltage | AC220V、50Hz |
| Online Monitoring | Torque Monitoring, Pressure Monitoring, Position Monitoring |
| Static Mixing | Compatible with MS and 160A standard mixing tubes, with options for standard or custom flat nozzles. |
Specifications describe the published configuration. Confirm material compatibility, options and final performance requirements with Veady.
