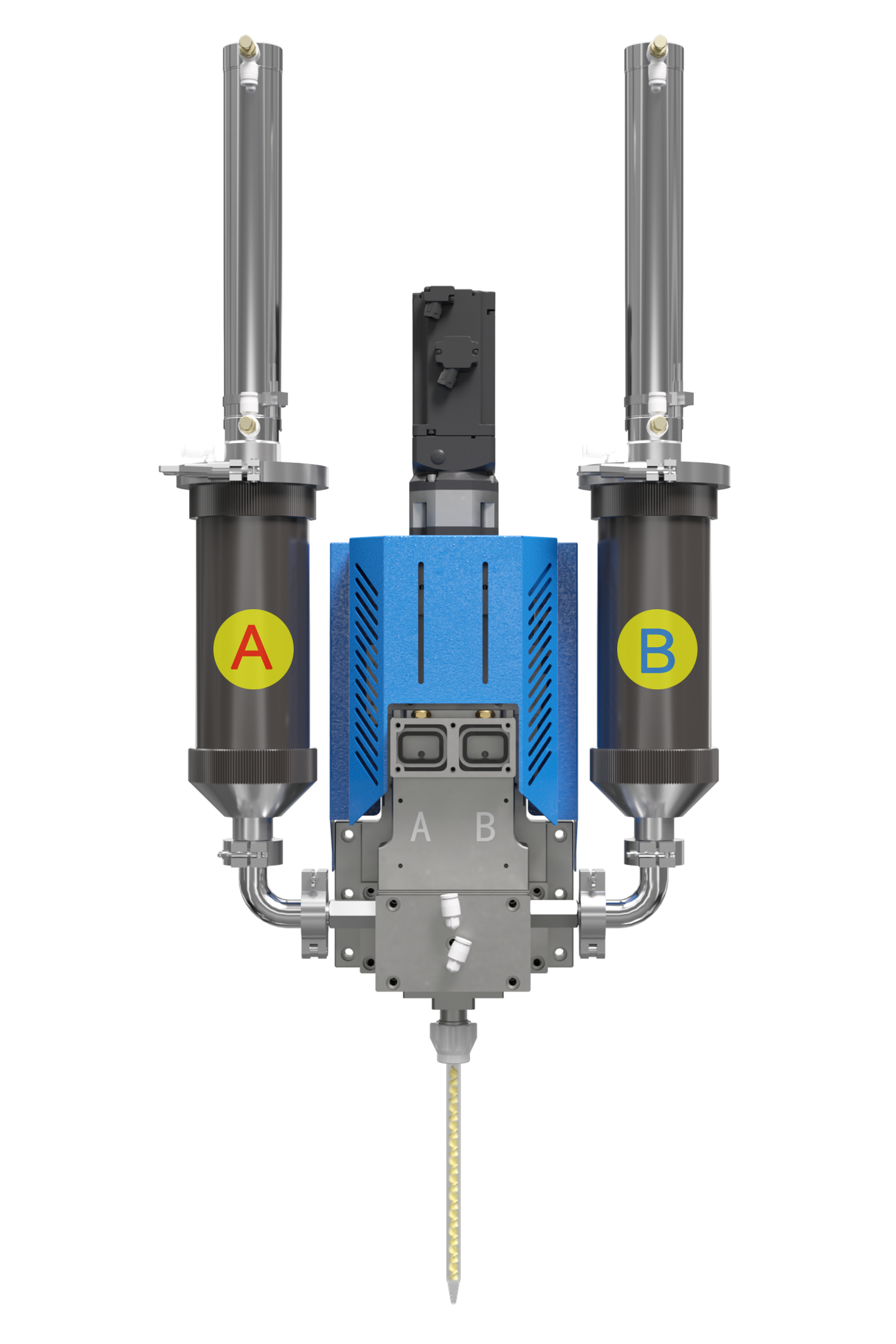

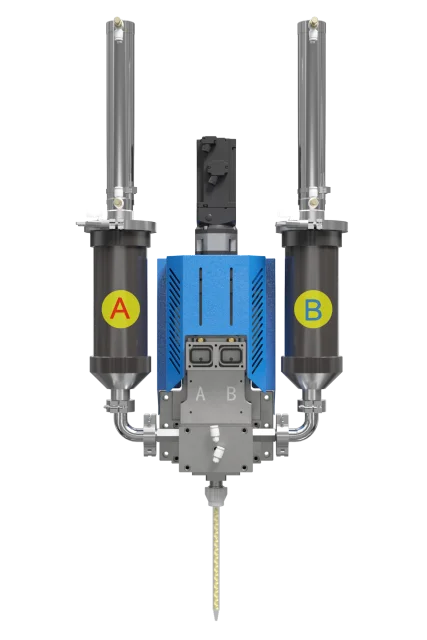

PV Dual-Component Piston Metering Valve
Model PV15
Utilizes a servo motor-driven piston structure to achieve high-precision flow control and exceptional sealing performance.
- Dispensing Speed
- Max 5ml/s
Equipment overview
Product Features：
Dual-component piston metering valve enables precise ratio control with high repeatability. Its FIFO flow path design prevents material clogging and curing. Suitable for high-pressure, high-temperature, or high-precision flow control applications.
Specifications：
Technical specifications
| Specification | Published configuration |
|---|---|
| Product Name | PV Dual-Component Piston Metering Valve |
| Model | PV15 |
| Ratio Range | 1:1 to 10:1 |
| Applicable Viscosity | ≤600,000mPas |
| Repeatability Accuracy | ≤±2% |
| Dispensing Speed | Max 5ml/s |
| Cycle Time | 4s |
| Min. Shot Volume | 0.1ml（1：1） |
| Max. Shot Volume | 30ml（1：1） |
| Operating Temperature | 10-40℃ |
| Overall Dimensions | 225*175*400mm |
| Valve Weight | 7.5KG |
Specifications describe the published configuration. Confirm material compatibility, options and final performance requirements with Veady.
