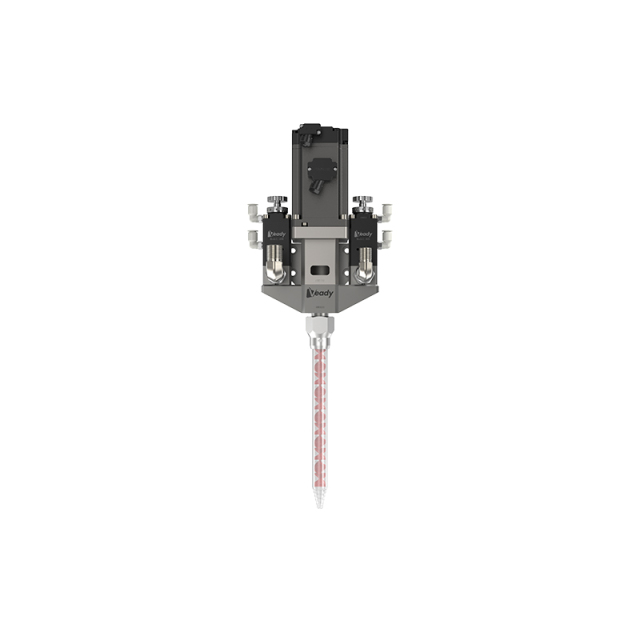

DV Dynamic Valve (No-Clean Version)
Model DV1216
Features motor-driven high-speed rotation mixing technology, specifically designed for medium-to-low viscosity two-component adhesives with highly disparate mixing ratios.
Equipment overview
Product Features：
Features a combined dual-airpath glue valve with motor-driven mixing tube blades for high efficiency and easy replacement. Suitable for medium-low viscosity adhesives or materials with highly disparate mixing ratios, compatible with standard disposable dynamic mixing tubes.
Specifications：
Technical specifications
| Specification | Published configuration |
|---|---|
| Product Name | DV Dynamic Valve (No-Clean Version) |
| Model | DV1216 |
| Flow Rate | 1-10ml/s |
| Drive Pressure | 0.4MPa |
| Operating Frequency | 240cycles/min |
| Drive Component | Aluminum Alloy |
| Fluid Component | SUS304 |
| Needle Material | Tungsten Steel |
| Stirring & Mixing | Plastic Chamber / Plastic Blades |
| Inlet Size | G1/4 |
| Valve Weight | 3.0KG |
| Overall Dimensions | 160*100*235mm |
Specifications describe the published configuration. Confirm material compatibility, options and final performance requirements with Veady.
