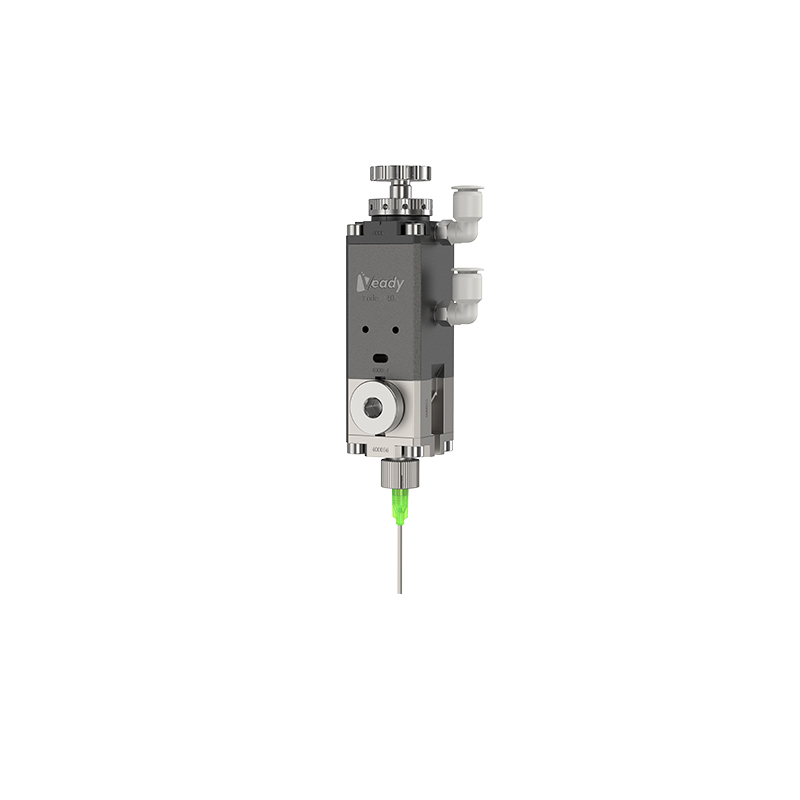

RV40S Needle Valve
Model RV40S
Features dual-air path control and a balanced valve core design, suitable for rapid opening and closing of single-component fluids.
Equipment overview
Product Features：
Needle-type design for high precision. Utilizes high-wear-resistant needles and seals to ensure clean, immediate cut-off. Electric heating option available.
Specifications：
Technical specifications
| Specification | Published configuration |
|---|---|
| Product Name | RV40S Needle Valve |
| Model | RV40S |
| Min. Drive Pressure | 0.4Mpa |
| Max. Fluid Pressure | 30bar |
| Max. Operating Frequency | 360 cycles/min |
| Drive Component Material | Aluminum Alloy |
| Fluid Component Material | SUS304 |
| Needle Material | Tungsten Steel |
| Inlet Size | G1/4 Internal Thread |
| Outlet Size | G1/8 External Thread |
| Mounting Method | 2*M3 Internal Thread |
| Dimensions | 30mm*40mm*117.5mm |
| Valve Weight | 400g |
Specifications describe the published configuration. Confirm material compatibility, options and final performance requirements with Veady.
