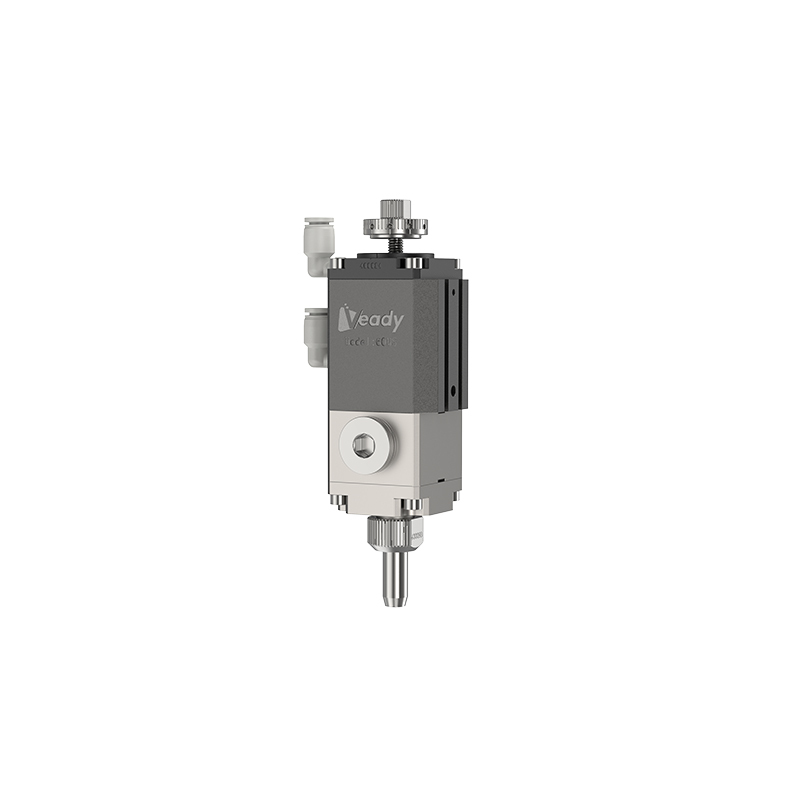

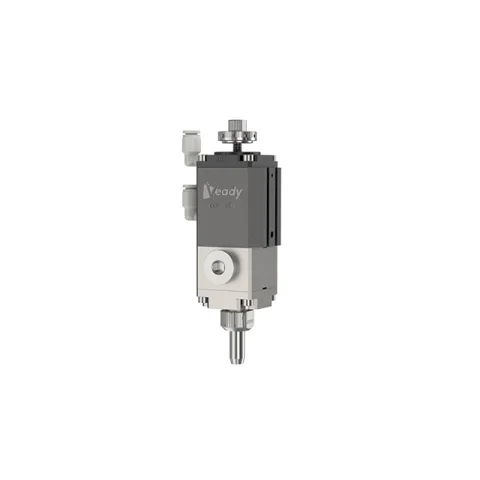

RV60MS Retraction Valve
Model RV60MS
Dual-air controlled retraction valve, suitable for medium-low viscosity fluid dispensing.
Equipment overview
Product Features：
Retraction design with high-wear-resistant pull rod and seals ensures clean, immediate cut-off and effective retraction. Optional valve status sensor and dilution lubrication unit.
Specifications：
Technical specifications
| Specification | Published configuration |
|---|---|
| Product Name | RV60MS Retraction Valve |
| Model | RV60MS |
| Min. Drive Pressure | 0.4Mpa |
| Max. Fluid Pressure | 100bar |
| Max. Operating Frequency | 240 cycles/min |
| Drive Component Material | Aluminum Alloy |
| Fluid Component Material | SUS304 |
| Needle Material | Tungsten Steel |
| Inlet Size | G3/8 Internal Thread |
| Outlet Size | G3/8 External Thread |
| Mounting Method | 2*M4 Internal Thread |
| Dimensions | 40mm*60mm*132.5mm |
| Valve Weight | 1KG |
Specifications describe the published configuration. Confirm material compatibility, options and final performance requirements with Veady.
