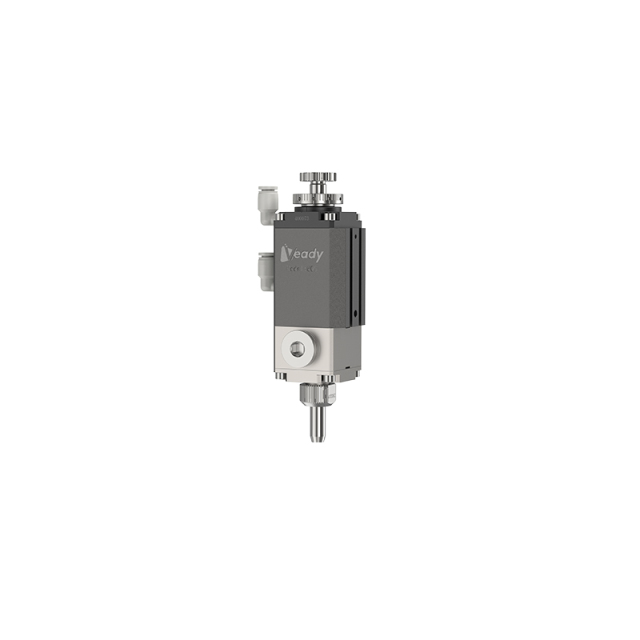

RV60S Needle Valve
Model RV60S
Dual-air controlled needle valve for medium-high viscosity fluids.
Equipment overview
Product Features：
Ideal for dispensing, potting, filling, lining, and dotting applications. Provides clean material cutoff with no residue and precise adhesive deposition. Optional valve status sensors and dilution lubrication units available.
Specifications：
Technical specifications
| Specification | Published configuration |
|---|---|
| Product Name | RV60S Needle Valve |
| Model | RV60S |
| Min. Drive Pressure | 0.4Mpa |
| Max. Fluid Pressure | 100bar |
| Max. Operating Frequency | 240 cycles/min |
| Drive Component Material | Aluminum Alloy |
| Fluid Component Material | SUS304 |
| Needle Material | Tungsten Steel |
| Inlet Size | G3/8 Internal Thread |
| Outlet Size | G3/8 External Thread |
| Mounting Method | 2*M4 Internal Thread |
| Dimensions | 40mm*60mm*132.5mm |
| Valve Weight | 1KG |
Specifications describe the published configuration. Confirm material compatibility, options and final performance requirements with Veady.
