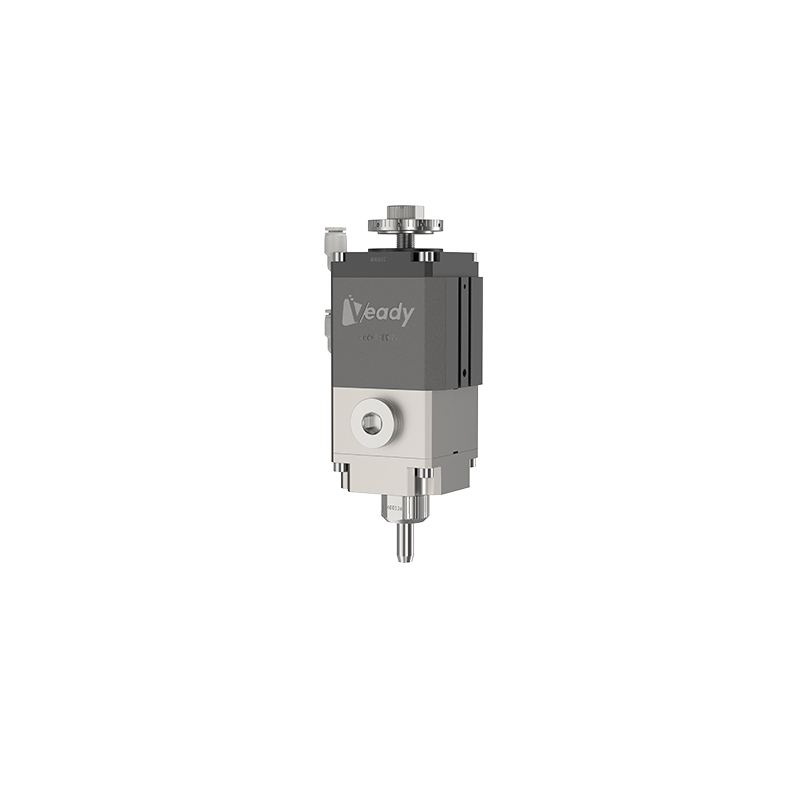

RV80MS Retraction Valve
Model RV80MS
Dual-air controlled retraction valve for medium-low viscosity fluids.
Equipment overview
Product Features：
Retraction design with high-wear-resistant pull rod and sealing components ensures clean, immediate break-off and effective retraction. Optional valve switch detection sensor and dilution lubrication unit available.
Specifications：
Technical specifications
| Specification | Published configuration |
|---|---|
| Product Name | RV80MS Retraction Valve |
| Model | RV80MS |
| Min. Drive Pressure | 0.4Mpa |
| Max. Fluid Pressure | 125bar |
| Max. Operating Frequency | 240 cycles/min |
| Drive Component Material | Aluminum Alloy |
| Fluid Component Material | SUS304 |
| Needle Material | Tungsten Steel |
| Inlet Size | G1/2 Internal Thread |
| Outlet Size | G1/2 External Thread |
| Mounting Method | 2*M5 Internal Thread |
| Dimensions | 60mm*80mm*165mm |
| Valve Weight | 2KG |
Specifications describe the published configuration. Confirm material compatibility, options and final performance requirements with Veady.
