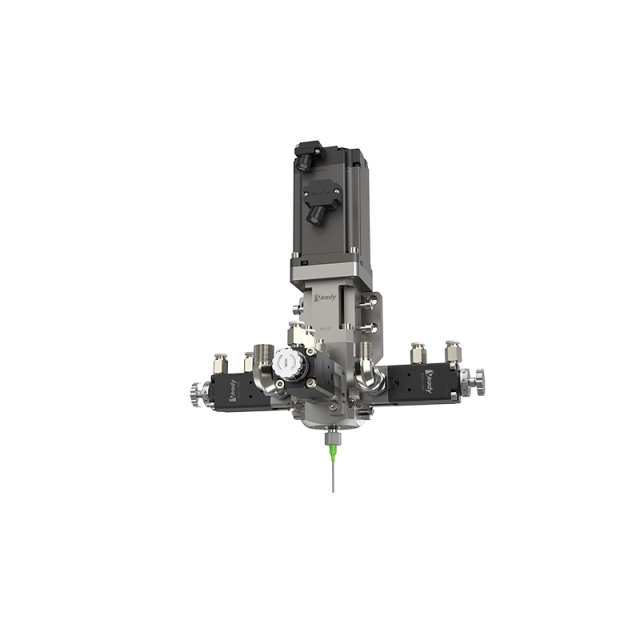

DVS Dynamic Valve (Forced-Cleaning Version)
Model DV2030
Features motor-driven high-speed rotation mixing technology, specifically designed for medium-to-low viscosity two-component adhesives with highly disparate mixing ratios.
Equipment overview
Product Features：
Features a modular dual-airpath adhesive valve system with motor-driven mixing blades for high efficiency and easy replacement. Suitable for medium-low viscosity adhesives or materials with significant ratio disparities. Optional electric heating and air cooling functions are available.
Specifications：
Technical specifications
| Specification | Published configuration |
|---|---|
| Product Name | DVS Dynamic Valve (Forced-Cleaning Version) |
| Model | DV2030 |
| Flow Rate | 1-15ml/s |
| Drive Pressure | 0.4MPa |
| Operating Frequency | 240 cycles/min |
| Drive Component | Aluminum Alloy |
| Fluid Component | SUS304 |
| Needle Material | Tungsten Steel |
| Stirring & Mixing | Plastic Chamber / Plastic Blades |
| Inlet Size | G1/4 |
| Valve Weight | 3.0KG |
| Overall Dimensions | 160*100*235mm |
Specifications describe the published configuration. Confirm material compatibility, options and final performance requirements with Veady.
