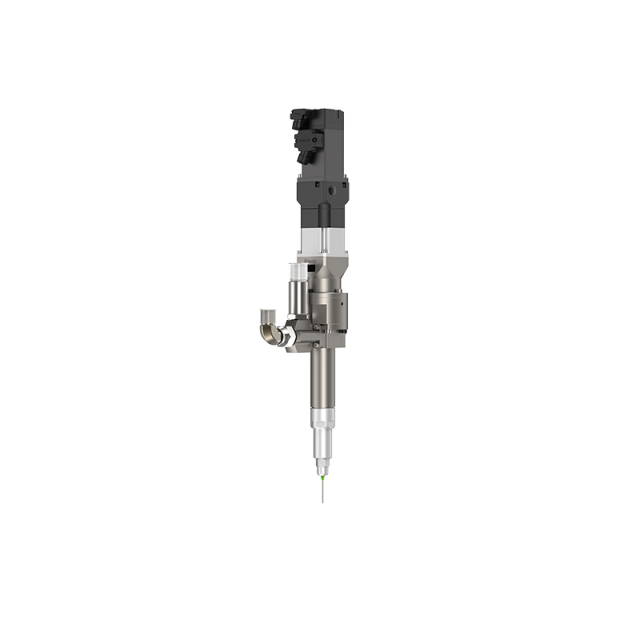

SV Single-Component Screw Valve
Model SV35
An industrial valve device that utilizes a screw drive mechanism to achieve precise fluid control and transfer.
Equipment overview
Product Features：
Used in production processes requiring extreme fluid dosing accuracy, such as electronic component encapsulation, medical device manufacturing, and new energy battery production. Its core function is to stably and uniformly deliver fluids—including adhesives, inks, lubricants, and electrolytes—in liquid or paste form to specified locations according to preset doses.
Specification：
Technical specifications
| Specification | Published configuration |
|---|---|
| Product Name | SV Single-Component Screw Valve |
| Model | SV35 |
| Flow Range | 3.5-21ml/min |
| Min. Flow Rate | 0.35ml |
| Applicable Viscosity | ≤500,000mpas |
| Repeatability Accuracy | ≤±1% |
| Supply Pressure | 0-0.6MPa |
| Dispensing Pressure | Max 25bar |
| Operating Temperature | 10-40℃ |
| Valve Weight | 3KG |
| Overall Dimensions | 60*60*400mm |
Specifications describe the published configuration. Confirm material compatibility, options and final performance requirements with Veady.
