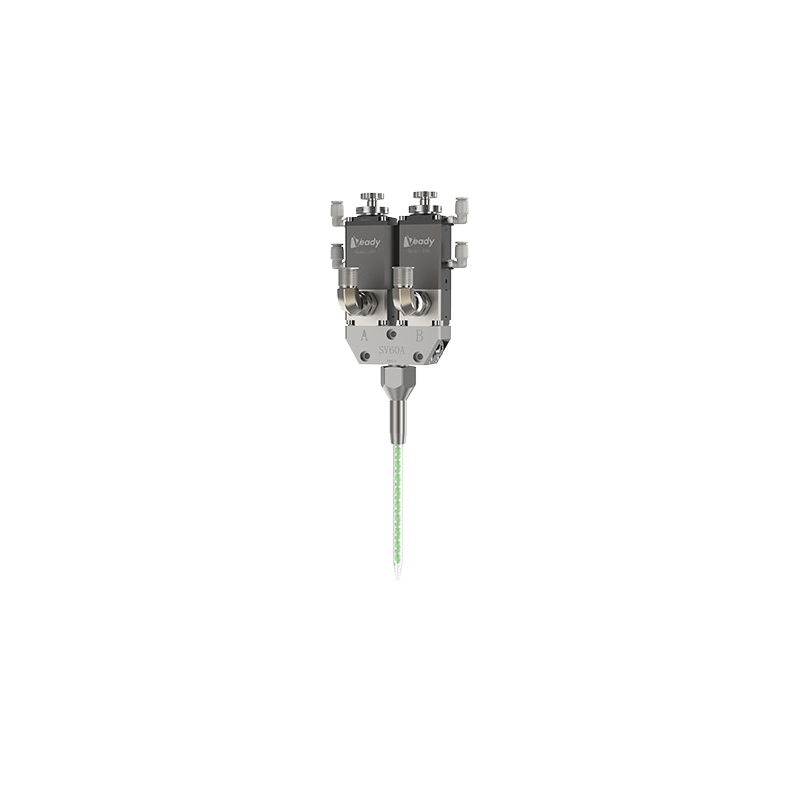

SV60 Static Valve

SV60 Static Valve

Model
SV60

A two-component static-mixing valve with separate material paths and controlled dispensing cutoff.

Explore this part of the adhesive process

Valve construction

The listed design uses an aluminium drive body, SUS304 wetted components and a tungsten-steel needle. Specify the mixer, supply pressure and connection sizes for the application.

Technical specifications

ParameterSpecification
Product NameSV60 Static Valve
ModelSV60
Min. Drive Pressure0.4 MPa
Max. Fluid Pressure160 bar
Max. Operating Frequency240 cycles/min
Drive Component MaterialAluminum Alloy
Fluid Component MaterialSUS304
Needle MaterialTungsten Steel
Inlet SizeG3/8 Internal Thread
Outlet SizeG3/8 External Thread
Mounting Method3 × M5 Counterbore
Dimensions135 mm × 100 mm × 190 mm (Excluding mixing tube)
Valve Weight3 kg

Technical specifications for the listed model. For application engineering, share your adhesive datasheet, part drawing and production requirements.
