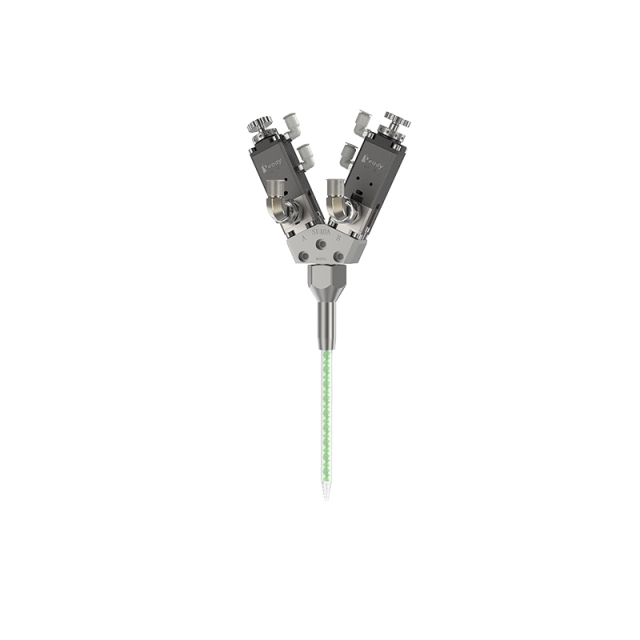

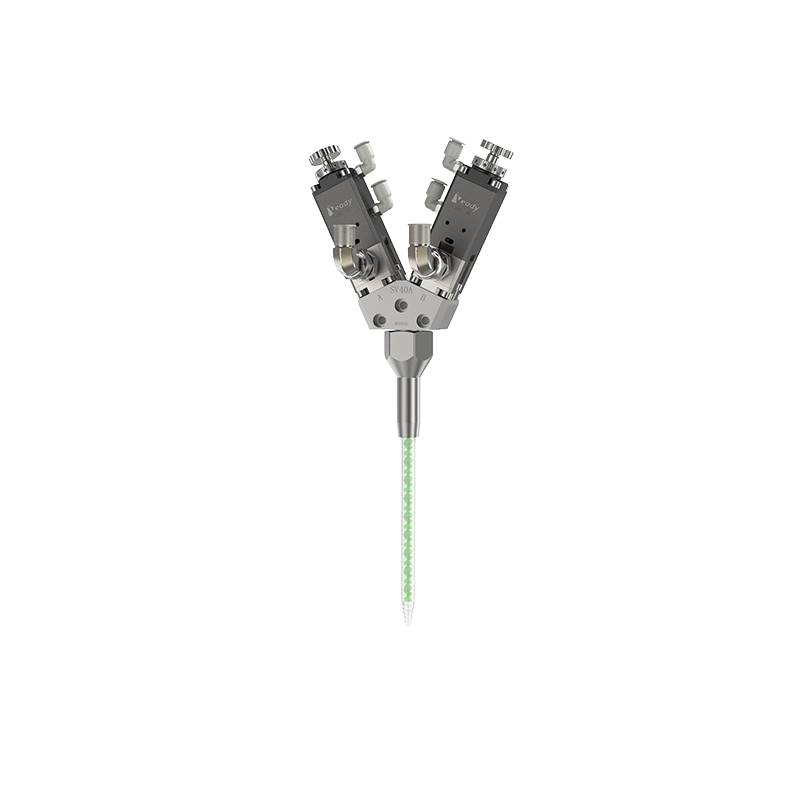

SV40-Y Static Valve
Model SV40-Y
Utilizes a dual-circuit controlled needle-type structure, suitable for materials of varying viscosities with extended operation times.
Equipment overview
Product Features：
The SV40 two-component static mixing shut-off valve is designed for medium-to-high viscosity two-component adhesives. It is compatible with standard static mixing tubes for cleaning-free operation, with optional valve body heating and static mixing heating functions.
Specifications：
Technical specifications
| Specification | Published configuration |
|---|---|
| Product Name | SV40-Y Static Valve |
| Model | SV40-Y |
| Min. Drive Pressure | 0.4Mpa |
| Max. Fluid Pressure | 30bar |
| Max. Operating Frequency | 240 cycles/min |
| Drive Component Material | Aluminum Alloy |
| Fluid Component Material | SUS304 |
| Needle Material | Tungsten Steel |
| Inlet Size | G1/42 Internal Thread |
| Outlet Size | G1/4 External Thread |
| Mounting Method | 3*M5 Counterbore |
| Dimensions | 145mm*85mm*155mm（Excluding mixing tube） |
| Valve Weight | 1.25KG |
Specifications describe the published configuration. Confirm material compatibility, options and final performance requirements with Veady.
